當前位置：中空玻璃生產線要注意哪些說明？
時間：2023-09-07 來源：http://m.hebeiruizhi.com/ 發布人：昌盛機械

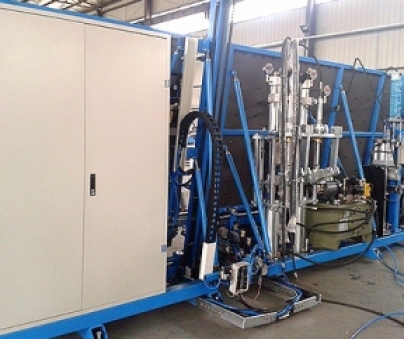

中空玻璃生產線主要有四段：入料段、清洗干燥段、檢查段和合片段。四段均以相同的傾角立式安放，結構緊湊、經濟實用、效率高、維護方便。清洗箱為不銹鋼材料制造，傳送輥為耐酸堿橡膠輥;通過有機玻璃視窗可隨時方便地觀察玻璃清洗情況;入料段、清洗干燥段采用手動無級調速電機傳動，玻璃以佳的速度平穩地運行。
The insulating glass production line mainly consists of four sections: feeding section, cleaning and drying section, inspection section, and assembly section. All four sections are placed vertically at the same inclination angle, with a compact structure, economic practicality, high efficiency, and easy maintenance. The cleaning box is made of stainless steel material, and the conveyor roller is acid and alkali resistant rubber roller; Through the organic glass window, it is easy to observe the glass cleaning situation at any time; The feeding section and cleaning and drying section are driven by manual stepless speed control motors, and the glass runs smoothly at the best speed.
干燥段采用大風力傾斜風刀能使玻璃表面得以干燥。檢查段設有燈管，能清晰地檢查玻璃的清洗質量;合片段具有玻璃定位及鋁框定位裝置，能完成玻璃定位、鋁框定位安放功能。玻璃由傳送膠輥承托及傳送，傳送輥由電機(輥壓段電機)經過變頻調速器通過鏈輪帶動，玻璃由清洗干燥段低速進入本段，經檢查合格后加速運行至下一工作段，提高工作效率;由變頻調速器控制本段調速電機的運行速度，光電開關控制玻璃進入下一工作段。
The drying section uses a high wind force inclined blade to dry the glass surface. The inspection section is equipped with a light tube, which can clearly check the cleaning quality of the glass; The composite segment has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning placement. The glass is supported and transported by a conveyor roller, which is driven by a motor (roller pressing section motor) through a frequency converter and a sprocket. The glass enters this section at low speed from the cleaning and drying section, and after passing the inspection, accelerates to the next working section to improve work efficiency; The operating speed of the speed regulating motor in this section is controlled by a frequency converter, and the photoelectric switch controls the glass to enter the next working section.
中空玻璃生產線的清洗水路系統為循環系統，其水箱配有恒溫水加熱裝置，水溫可自動保持在合理的范圍。
The cleaning water system of the insulating glass production line is a circulating system, and its water tank is equipped with a constant temperature water heating device, which can automatically maintain the water temperature within a reasonable range.
水由水泵從水箱抽出，經噴淋水管噴到玻璃表面上，清洗玻璃后流回水箱，循環使用。若水質較差，需配備水處理裝置(用戶自備)，水經處理后進入水箱，按上述步驟循環使用。
Water is pumped out of the water tank by a water pump and sprayed onto the surface of the glass through a spray pipe. After cleaning the glass, it flows back to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) needs to be equipped. After the water is treated, it enters the water tank and is recycled according to the above steps.
風路系統：由風機通過一對傾斜風刀，吹干玻璃。
Air duct system: The glass is blown dry by a fan through a pair of inclined blades.
總而言之，中空玻璃生產線主要分為四段，每段分工明確，搭配合理。
In summary, the insulating glass production line is mainly divided into four sections, each with a clear division of labor and a reasonable combination.
本文由中空玻璃加工設備提供技術支持，更多的詳細精彩內容請點擊我們的網站http://m.hebeiruizhi.com ，我們將會全心全意為您提供滿意的服務。
This article provides technical support from insulating glass processing equipment. For more detailed and exciting content, please click on our website http://m.hebeiruizhi.com We will wholeheartedly provide you with satisfactory service.
