鋁條丁基膠涂布機主要性能特點
Main performance characteristics of aluminum strip butyl adhesive coater
1、丁基膠涂布機為中空玻璃出產的首要必備設備，為半主動膠條涂布機，即人工持鋁距離框進行操作，將鋁距離框放在傳送帶上，人工持鋁距離框隨傳送帶運行，當鋁距離框經過傳感器時，傳送壓輪及打膠閥將按設定程序主動運行，即氣缸動作，壓輪壓下，壓送鋁距離框進行;待鋁距離框抵達打膠頭時開端打膠，將膠均勻地涂在鋁距離框上，當距離框另一側快要抵達壓輪時，壓輪抬起，離開打膠頭時，膠閥主動停止打膠。
1. Butyl adhesive coating machine is the primary and necessary equipment for the production of insulating glass. It is a semi-active adhesive strip coating machine, that is, manually holding the aluminum distance frame for operation, placing the aluminum distance frame on the conveyor belt, and manually holding the aluminum distance frame runs with the conveyor belt. When the aluminum distance frame passes through the sensor, the transmission roller and glue valve will actively operate according to the set procedure, that is, the cylinder acts, the roller is pressed down, and the aluminum distance frame is pressed; Start gluing when the aluminum distance frame reaches the gluing head, and apply the glue evenly on the aluminum distance frame. When the other side of the distance frame is about to reach the pressing wheel, the pressing wheel is raised, and when it leaves the gluing head, the glue valve actively stops gluing.
2、選用人機界面顯示屏便于操作，體系以PLC為操控中心，由光電傳感PLC機、中文操控終端、PLC主動轉換。按鈕開關等電器元件組成，功用強大、作業牢靠、操作簡單主動化程度較高。
2. The man-machine interface display screen is selected for easy operation. The system takes PLC as the control center and is actively converted by photoelectric sensor PLC machine, Chinese control terminal and PLC. It is composed of button switch and other electrical components, with strong function, reliable operation, simple operation and high degree of automation.
3、鋁條丁基膠涂布機選用目前國內較大缸徑?195膠缸，裝膠容量大，較大出眾確保連續出產時刻，進步作業效率。選用較氣動增壓體系，充沛確保膠頭出膠壓力衡定，避免了打膠粗細不勻，斷膠現象。選用4段變頻調速，較大出眾照料操作工人熟練程度，進步作業效率。
3. Aluminum strip butyl adhesive coating machine adopts the current domestic large cylinder diameter? 195 rubber cylinder, with large rubber loading capacity and large limit, ensures continuous production time and improves operation efficiency. The more advanced pneumatic pressurization system is selected to fully ensure that the glue outlet pressure of the glue head is constant, avoiding uneven glue thickness and glue breaking. 4-stage variable frequency speed regulation is selected to greatly limit the proficiency of operators and improve operation efficiency.

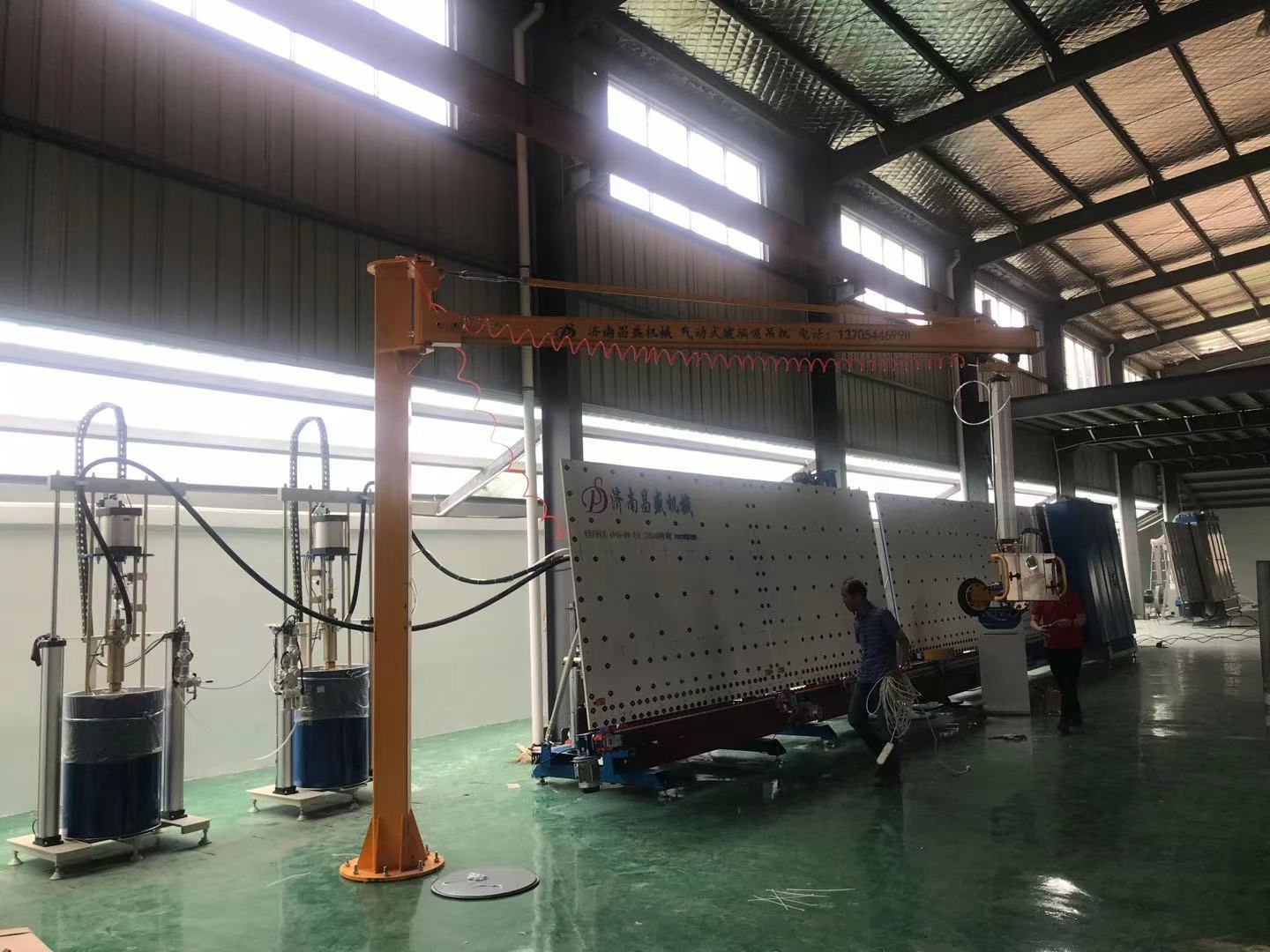

http://m.hebeiruizhi.com/uploadfile/2022/07/07/1657166553123048.jpg
4、鋁條丁基膠涂布機主要功能有：
4. The main functions of aluminum strip butyl adhesive coater are:
1恣意設置主動加熱時刻;
1. Arbitrarily set the active heating time;
2無膠報警提示;
2. No glue alarm prompt;
3膠頭、膠缸主動加熱功用;
3. Active heating function of rubber head and rubber cylinder;
4主動待機功用：減少工人值守時刻，進步作業效率;
4. Active standby function: reduce workers' duty hours and improve operation efficiency;
5在手動狀態下可打圓弧。
5 arc can be made in manual mode.
5、選用不銹鋼作業臺面，充沛確保設備外觀及整理方便。
5. Stainless steel worktop is selected to fully ensure the appearance of the equipment and convenient sorting.
以上就是臥式丁基膠涂布機為大家介紹的內容，感謝您在百忙之中查看我公司的信息內容，如果您想要了解的更多，歡迎您來電進行咨詢!http://m.hebeiruizhi.com
The above is what the horizontal butyl adhesive coater introduces to you. Thank you for checking the information of our company in your busy schedule. If you want to know more, you are welcome to call for consultation! http://m.hebeiruizhi.com
