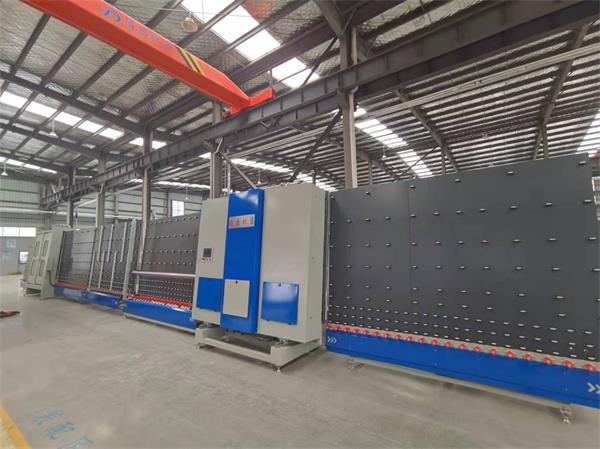

臥式中空玻璃設備中的玻璃清洗機主要由傳動系統、刷洗、清水沖洗、純水沖洗、冷、熱風干、電控系統等組成，根據用戶需要，玻璃清洗機還可以還配有手動(氣動)玻璃翻轉小車和檢驗光源等系統，在使用中主要檢查海綿輥是否浸泡完全，毛刷是否干凈并且能保證足夠的毛量和毛長，重要的是注意用電安全。
The glass cleaning machine in horizontal hollow glass equipment mainly consists of a transmission system, brushing, water flushing, pure water flushing, cold, hot air drying, and electric control system. According to user needs, the glass cleaning machine can also be equipped with a manual (pneumatic) glass flipping car and inspection light source system. During use, the main check is whether the sponge roller is completely soaked, whether the brush is clean, and can ensure sufficient gross weight and gross length, It is important to pay attention to electricity safety.
臥式中空玻璃設備中的丁基膠涂布機使用中主要是看漏膠與否，再就是膠嘴溫度是140℃左右，注意安全，別燙傷。：
The use of the butyl adhesive coating machine in horizontal insulated glass equipment mainly depends on whether the adhesive leaks, and the temperature of the adhesive nozzle is around 140 ℃. Pay attention to safety and avoid burns
臥式玻璃清洗機，顧名思義，就是讓玻璃“躺”在操作臺上，由傳送棍、電機、水泵、毛刷和海綿輥、風機等組成，將待加工玻璃原片放在玻璃清洗機上面，傳送輥傳送到毛刷部分，毛刷部分會有水噴出，對玻璃進行清洗，后面海綿輥也叫蘸水棒、吸水棒，由風機吹干玻璃，這樣，一塊玻璃清洗完成。其中，提供的臥式玻璃清洗機可對水箱中的水進行加熱，也可對風機入口加熱，還可以采用密閉風箱，風箱內也加入加熱絲，風機采用循環熱風，對玻璃吹干，效果更好。
A horizontal glass cleaning machine, as the name suggests, is to make the glass "lie" on the operating table, consisting of a conveyor rod, motor, water pump, brush, sponge roller, fan, etc. The raw glass to be processed is placed on top of the glass cleaning machine, and the conveyor roller is transported to the brush part. The brush part will spray water to clean the glass. The sponge roller, also known as a dipping rod or water suction rod, is then blown dry by the fan, and a piece of glass is cleaned. Among them, the horizontal glass cleaning machine provided can heat the water in the water tank, as well as the inlet of the fan. It can also use a closed air box, which also adds heating wires. The fan uses circulating hot air to dry the glass, resulting in better results.
使用優勢：
Usage advantages:
膠輥升降機構采用單項整體調節，升降統一，平穩，調節方便；
The rubber roller lifting mechanism adopts a single overall adjustment, which is unified, stable, and easy to adjust;
三對膠輥，壓合強度信次遞增，確保壓合質量，自動溫控，高效節能；
Three pairs of rubber rollers, with increasing compression strength to ensure compression quality, automatic temperature control, and efficient energy conservation;
按照從輸入到輸出方向，采用梯度壓合方式，壓合效果佳；
According to the direction from input to output, the gradient pressing method is adopted, which has a good pressing effect;
采用24根遠紅外線燈管加熱，熱效率高；
Adopting 24 far-infrared light tubes for heating, with high thermal efficiency;
具備瞬時加熱功能。
Equipped with instantaneous heating function.
本文由中空玻璃生產線友情奉獻.更多有關的知識請點擊: http://m.hebeiruizhi.com真誠的態度.為您提供為全面的服務.更多有關的知識我們將會陸續向大家奉獻.敬請期待.
This article is a friendly contribution from the insulating glass production line. For more relevant knowledge, please click on: http://m.hebeiruizhi.com Sincere attitude. We will provide you with comprehensive services. We will gradually contribute more relevant knowledge to everyone. Stay tuned
